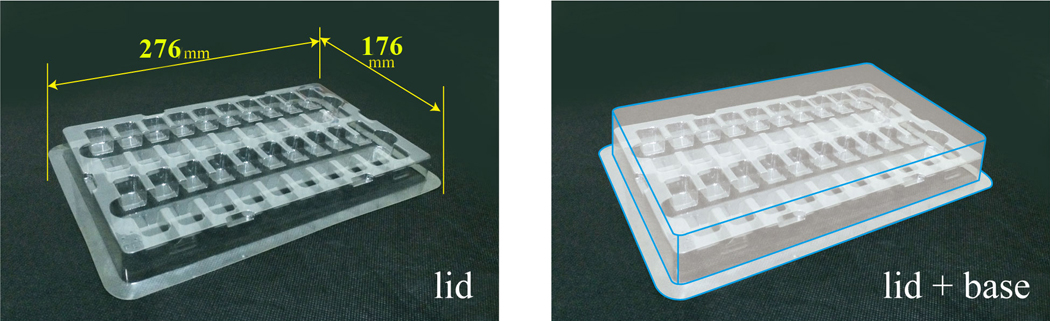

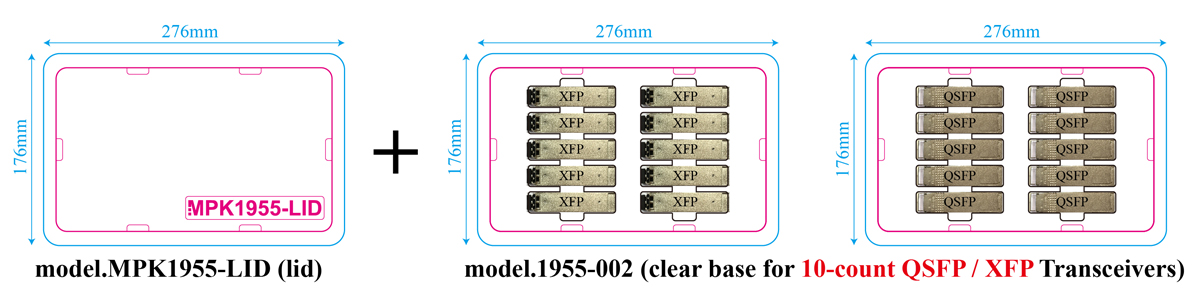

Model number. MPK1955-LID (lid) + 1955-002 (clear base for 10-count QSFP / XFP Transceivers)

Details about the carton

Model MPK1955-LID (clear lid) = 320pcs = 1 carton = 570 x 450 x 450 mm = 4.08 cubic feet (Carton for model 1678)= 24 KGS (13.5)

Model 1955-002 (clear base for 10-count QSFP / XFP Transceivers) = 320pcs = 1 carton = 570 x 450 x 450 mm = 4.08 cubic feet (Carton for model 1678)= 24 KGS (14.5)

1 set= 1 clear lid + 1 clear base
320 sets = 2 cartons = 8.16 cubic feet = 48 KGS
640 sets = 4 cartons = 16.32 cubic feet = 96 KGS
960 sets= 3 cartons = 24.48 cubic feet = 144 KGS

MOQ (Minimum Order Quantity)= 1280 sets= 8 cartons = 32.64 cubic feet = 192 KGS

1 x 20ft container = 36,480 sets
1 x 40ft high container = 88,000 sets


If you need more information, please contact with with us

Memorypack Industrial Co., Ltd
POLU industrial Ltd
Shinly Plastics corporation
WJP memorypack Industrial Co., Ltd

transceiver tray
transceiver clamshell
transceiver container
transceiver plastic box
transceiver packaging

optical transceiver tray
optical transceiver clamshell
optical transceiver container
optical transceiver plastic box
optical transceiver packaging

SFP tray
SFP clamshell
SFP container
SFP plastic box
SFP packaging





how to put optical transceiver into SFP tray clamshell packaging

gbic-t transceiver clamshell plastic box blister case

Transceiver packaging plastic box clamshell gbic sfp sfp plus xfp xenpak x2

What are transceivers?

A transceiver in simple terms can be defined as a device that comprises of both a transmitter and a receiver of analog or digital signals.
Radios and telephones are some of the devices that use transceivers. Network transceivers are used in specific networks like LAN to transmit signals.
Lots of people tend to confuse transceivers and transponders ere is the difference; a transceiver transmits and receives signals anytime while a transponder
only responds to an incoming signal or command.

Transceivers come in three configurations; the chip, board and module style. The chip style is portable and the smallest optical transceiver available.
The board Style unlike the chip style, is in-built in the network system making it permanent while the module Styles are stand-alone devices as they
are not directly installed in the network system.

Modes of Channel operations

Fiber optic transceivers operate in three modes of channels; the simplex, half-duplex, and full-duplex modes.

1. The Simplex mode: This mode of channel operation is one way. It does not send back error information. Since it is one way,
    its use is phasing out and todayit is mainly used in radios.
2. Half-duplex mode: This can only handle a single signal at a time. That is; it can only transmit or receive a signal at a time. Not both.
3. Full-duplex mode: A full-duplex transceiver can handle the reception and transmission of all signals at once. One thing to note though
    is that the transmitter and receiver need to work on different frequencies in order to avoid collisions between transmitted and reception signals.
    Some of the types of Transceivers we offer

GBIC: GBIC (Gigabit Interface Converter) is the media conversion device that connects Gigabit network equipment and fiber optic networks. By use of a GBIC transceiver,
Gigabit network equipment can connect to single mode ports, multimode fiber ports and even copper wires. GBIC is also hot pluggable which enables connection modifications.

SFP: SFP in full is Small Form- factor Pluggable. They are also referred to as mini GBIC due to their similarity in function to the GBIC transceivers though smaller in size.
SFP transceivers are mainly used to link equipment in telecom and data communications like switches and routers. They support applications like Fiber-to-the-desktop (FTTD),
SONET/SDH Network, Gigabit Ethernet, and High-speed computer links among others.

SFP Plus (SFP+): These are an upgraded version of the SFP. The only difference is that they can support up to 10Gbps data rates and are smaller than the 10Gbps X2 and
Xenpak transceivers.

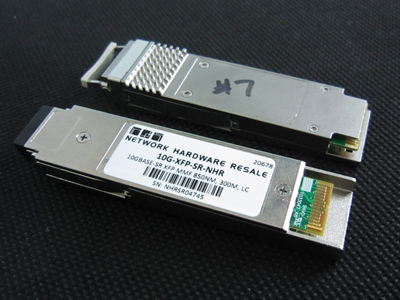

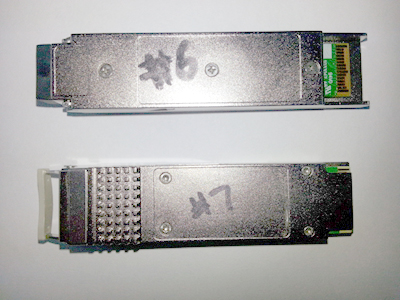

XFP: These are protocol independent optical media conversion equipment used in the SONET/SDH Network, 10G Ethernet and Fiber channel applications. XFP transceivers
are currently the cheapest and the smallest transceivers.

XENPAK: These transceivers support all optical transceiver ports defined in the IEEE 802.3ae. Covering up to 10Km via a G652 multimode fiber he Xenpak transceivers
come in three types which include; Xenpak 10GB SR, Xenpak 10GB LR and the 40km Xenpak 10 GP ER.

X2: These function exactly like the Xenpak because they were built on the Xenpak standards. These optical transceivers?10G Ethernet standards were defined by IEEE in 2002.
