Back to list of adaptor / reader (ms pro duo to ms)

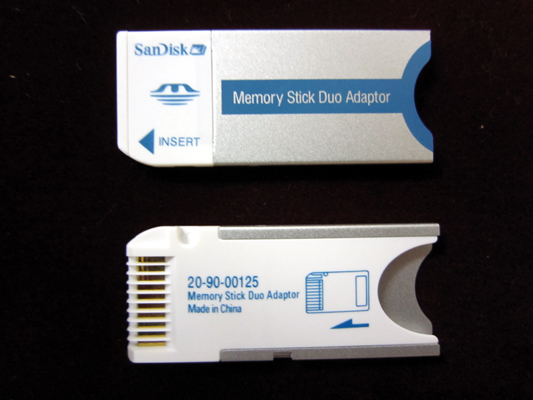

Model: Sandisk ms pro duo to ms adaptor reader
Specification
Dimension 50 x 21.5 x 2.8mm
Material Insulator: ABS+PC
Contacts: Phosphor Bronze
Electrical Current Rating: 0.5 Amps Max
Contact Resistance: 50 mΩ Max
Insulation Resistance: 1,000 MΩ Min
Mechanical Mating cycle: 10,000 cycle
Mating force: 1 Kg Max.( 9.8N )
Unmating force: 0.1Kg Min ( 0.98N ).
Contact Retention: 0.3 Kg/Pin Min.(2.94N)
Operating Temperature: -20 degree C ~ +60 degree C

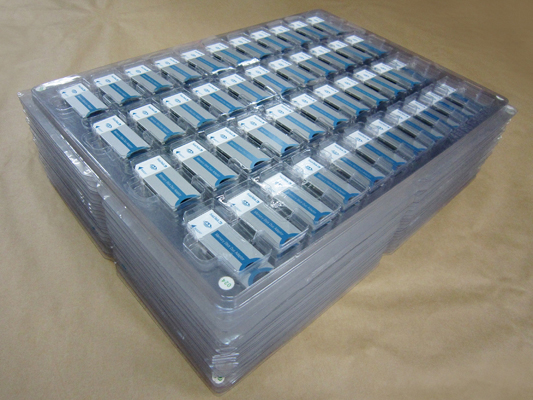

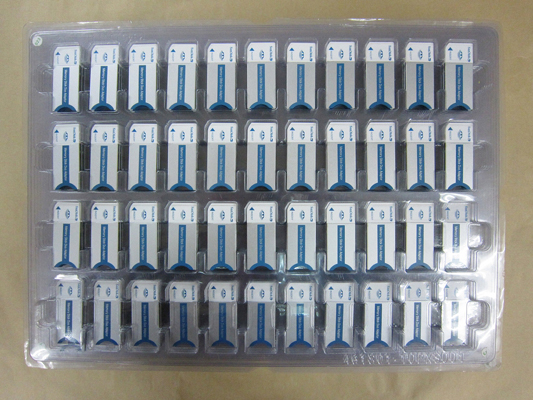

Details about the carton (bulk) Model : 1000 pcs = 1 carton = x x = cubic feet = 6 KGS
Details about the carton (with mini case) Model : pcs = 1 carton = x x = cubic feet = KGS
