Model MPK10TFSATA3 ( Convert 10 MicroSD to 2.5" SSD / interface: SATA 3 ) EMMC
Model MPK10TFSATA3

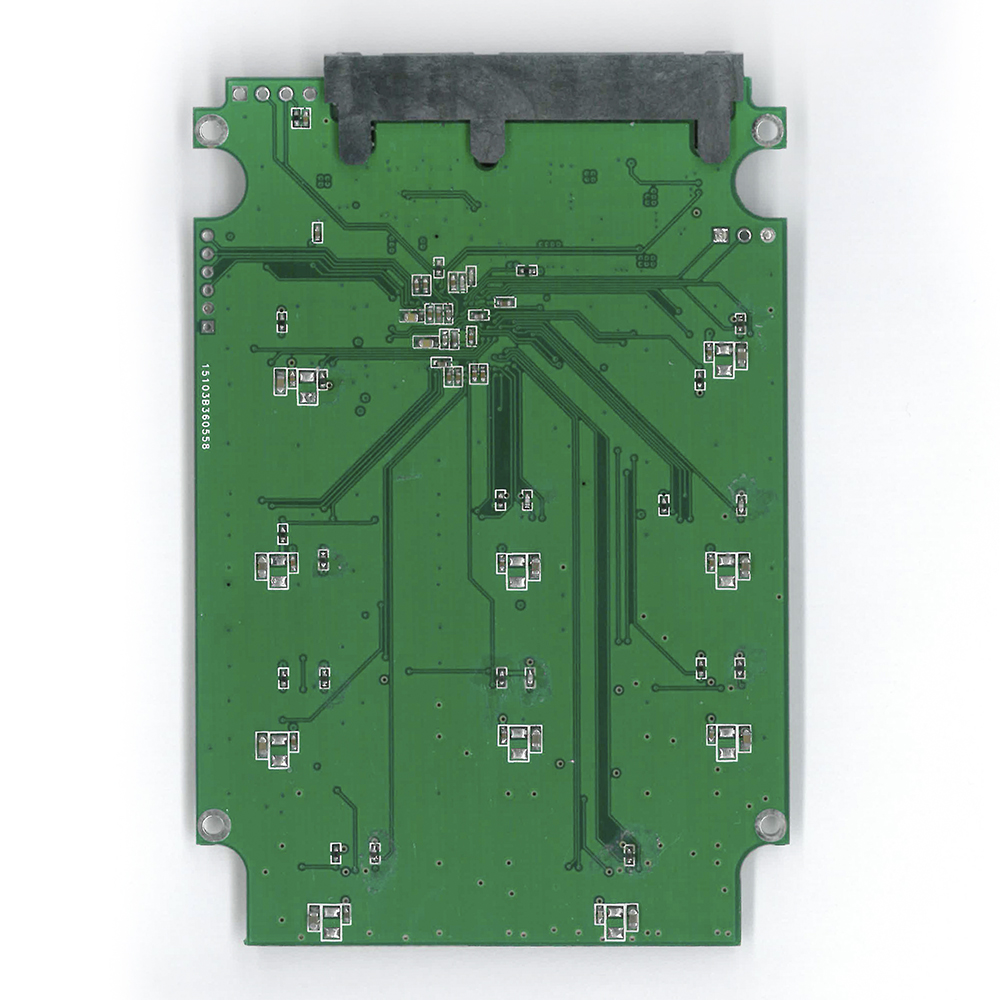

Specification Convert 10 MicroSD to 2.5" SSD ( interface: SATA 3 )
Details about the carton 2019年03月14日更新
Model MPK10TFSATA3 = 1 carton = 400 pcs = 37 x 24 x 37 cm = 1.16 cubic feet = 14 KGS

(1) each piece packed by one poly bag
1 carton = 200pcs = 472 x 292 x 120 mm = 0.584 cubic feet = 7.0 KGS
標準包裝 = 200PCS/ 箱 4.8KG 7.0KG 0.584 才
每 PCS 置入汽泡袋,5 袋放入一紙坑 每箱 40 坑 =200PCS
外箱尺寸 = 472 * 292 * 120mm = 0.584 才 裝

(2) packed by plastic clamshell box
1 carton = 200pcs = 42 x 27 x 78 cm = 3.13 cubic feet = 20 KGS


10 microSD to 2.5" SSD adapter with retail packaging 1 10 microSD to 2.5" SSD adapter with retail packaging 2
Details about the carton (Retail packaging 1 & 2) : Minimum order quantity required =1 carton = 200pcs = 42 x 27 x 78 cm = 3.13 cubic feet = 20 KGS



SATA 1 = 1.5Gbps = 180MB/s

SATA 2 = 3.0Gbps = 375MB/s

SATA 3 = 6.0Gbps = 750MB/s





Code Video file English (Description) Chinese Link (連結)
1 MPK10TFSATA3 SSD converter 10 microSD to SSD adapter MPK10TFSATA3 SSD converter 10-count microSD to SSD adapter ( www.memorypack.com.tw ) MPK10TFSATA3 SSD轉換器/將10片裝microSD轉換為SSD的適配器 https://youtu.be/chjkNE8NZW0
2 MPK10TFSATA3 SSD converter 10 microSD to SSD enclosure MPK10TFSATA3 SSD converter 10-count microSD to 2.5" SSD enclosure ( www.memorypack.com.tw ) MPK10TFSATA3 SSD轉換器/將10片裝microSD置入2.5吋SSD外殼 https://youtu.be/StkDITwDQZc



SSD Converter Operation Manual :

(Step 1) To see best performance of this adapter, we strongly suggest you to insert 10 micro SD cards (not only 5pcs or 8pcs) into the slot.



(Step 2 ) If you don't have enough (less than 10pcs) of memory cards, please insert the micro SD card into the slot 1, 2, 3 ... 10 in sequence



(Step 3 ) That all of your memory cards in the same brand is recommended.

For example,

All of your memory cards are Sandisk (OK)

5pcs of Kingston + 5pcs of Sandisk (We don't suggest)



(Step 4 )That all of your memory cards in the same specification is recommended.

For example,

All of your memory cards are Sandisk 64GB MicroSDX (OK)

5pcs of Sandisk MicroSDXC + 5pcs of Sandisk MicroSDHC (We don't suggest)



(Step 5 )That all of your memory cards in the same capacity is recommended.

All 64GB(OK)

5pcs are 64GB and the other 5pcs are 32GB(We don't suggest)



什麼是RAID

RAID 0 跟 RAID 1 都是將二顆硬碟組合成一顆硬碟,但結果是不同的

假設有a b硬碟都為20G
RAID 0 的結果為 在系統內看到一顆硬碟容量為 20+20=40G
RAID 0 可以將二個硬碟容量加總,資料寫入時是一部分寫入第一顆硬碟,一部份寫入第二顆硬碟,
優點是寫入跟讀取速度增加,但缺點是沒有容錯功能.一旦其中一顆硬碟損壞,將造成資料的損壞.

RAID 1 的結果為 在系統內看到一顆硬碟容量為 20+20=20G (Mirror鏡射)
RAID 1 雖然也是將a b硬碟組合成一顆硬碟,但是它是將b硬碟作成a硬碟的鏡射碟. 也就是說資料在寫入a硬碟時同時也寫入了一份複本在b硬碟, 優點是資料在存取時同時有一份是備分檔,缺點是會浪費一顆硬碟,因為二顆硬碟是存放著相同的資料。
